Ekstruder, Munsch, MAX 40D, egen luftforsyning og datalogging (Ex. powerbox) SN:___

Ekstruder, Munsch, MAX 40D, egen luftforsyning og datalogging (Ex. powerbox) SN:___

Kontakt os for tilbud!



VARENR: 531.187
Levering: Kontakt os for aktuel leveringsstatus


Skriv til os for mere info!

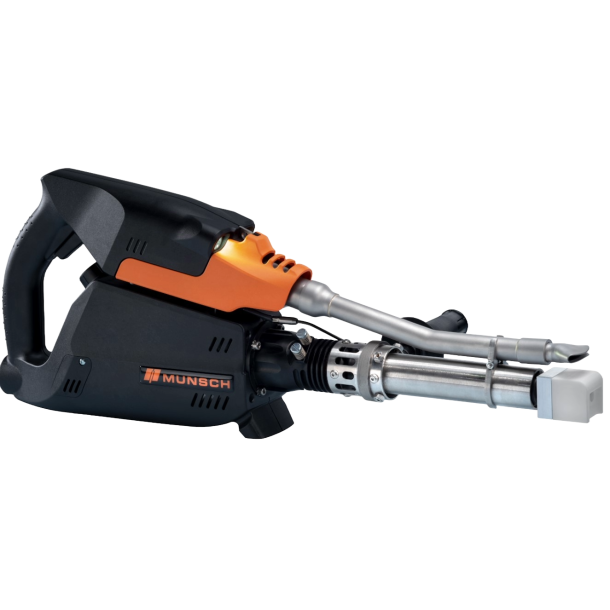

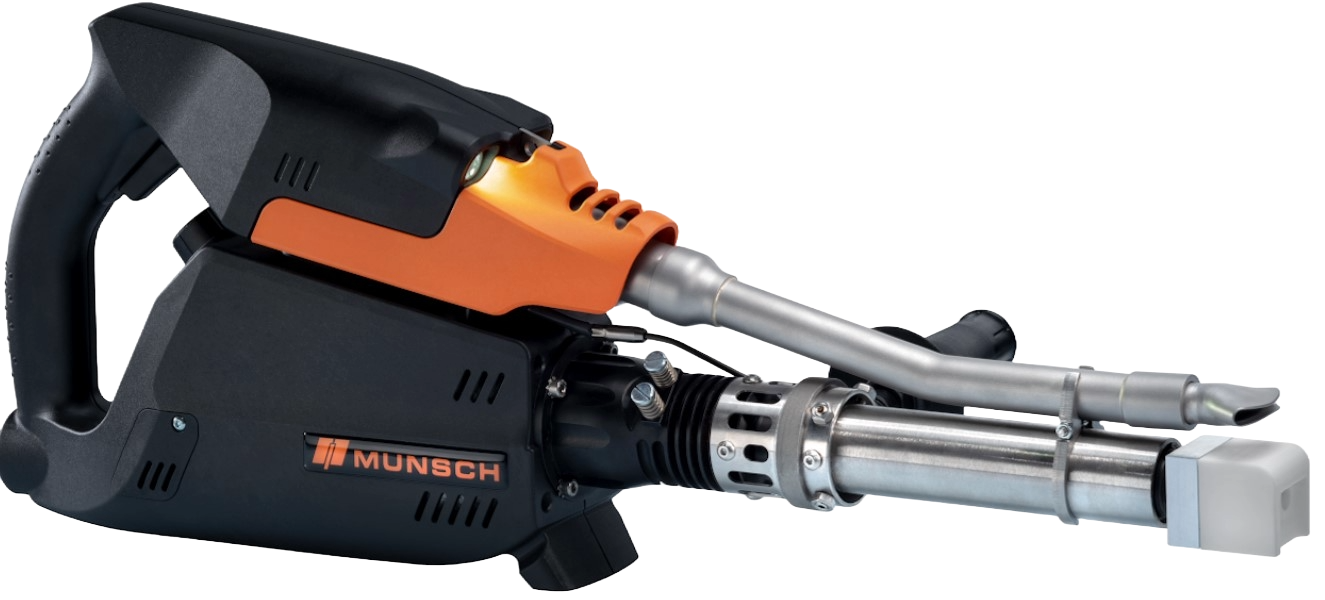

Portable Extruder Welding Gun; MAX-40-D, 230 V
Welding rate: 3,9 kg/h - Ø 5mm; 2,5 kg/h - Ø 4mm
Rod welding material: PP / PE / PVDF; preset
Welding rod: Ø 4 / 5 mm
Range of application: Wall thickness form 8 to 30 mm
Weight: 7,8 kg
Drive: 230 V speed controlled - brushless
- An external powerbox is required for using the extruder -
Extruder heating: 650 W,230 V
Air heater: 2300 W,230 V
Controller melting chamber: Temperature controller with
simultaneous set-point and actual value display
Controller air temperature: Temperature controller with
simultaneous set-point and actual value display
Cold start-protection: Minimum temperature safety level for
melting chamber and preheating air
Air requirement: 300 l/min, internal air supply
Electric connection: 7,5 m special connection
between powerbox and Extruder.
Preheating nozzle: 18mm; 23mm; 35mm
Hot air hood, tool set and transport case included
Included Welding shoes:
G07695 Unshaped shoe 43.01xxx-40-40-M
G08339 Welding shoe 43.0130F-40-40-M
